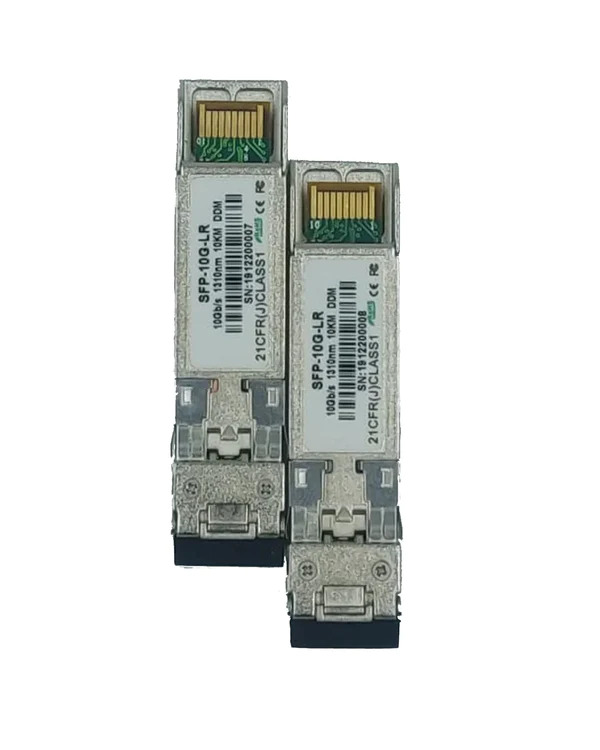

SFP Module -10G Fiber Module
The NovaStar 10G SFP modules are compatible with all NovaStar devices that have an SFP connection. Compact 10Gb/s optical transceiver module for serial optical communication applications. Choose from either single-mode (SM), or multi-mode (MM).
Due to a few constraints, we are not able to showcase the pricing of some products, for more information kindly write us at jane@summled.com or leave us messages on WhatsApp – Glad to hear from you!
Due to a few constraints, we are not able to showcase the pricing of some products, for more information kindly write us at jane@summled.com or leave us messages on WhatsApp – Glad to hear from you!
SFP Module -10G Fiber Module - SM | MM 1310nm SFP+ single-Mode transceiver, with diagnostic monitoring 10G BASE-LW/LR 0.6~10Gb/s CPRI/OBSAI Duplex SFP+ Transceiver, RoHS Compliant Could be applied to the LED controller or other devices 10G optical fiber signal transmission perfectly,which is suitable for novastar MCTRL4K,CVT4K,VX1000,H series,CVT10S ,etc.
Technical Specifications:
- Operating data rate up to 11.3Gbps
- 1310nm DFB-LD Transmitter
- Distance up to 10km
- Single 3.3V Power supply and TTL Logic Interface
- Duplex LC Connector Interface
- Hot Pluggable
- Power Dissipation < 1.0W
- Compliant with MSA SFP+ Specification SFF-8431
- Compliant with IEEE 802.3ae 10GBASE-LR/LW
- Operating Case Temperature Standard: 0℃~+70℃Industrial:-40℃~+85℃
- Safety Certification: TUV/UL/FDA*Note1
- RoHS Compliant
- Applications:
- 10GBASE-LR at 10.31Gbps
- 10GBASE-LW at 9.95Gbps
- OBSAI rates 6.144 Gb/s, 3.072 Gb/s,1.536 Gb/s, 0.768Gb/s
- CPRI rates 10.138Gb/s ,9.830 Gb/s,7.373Gb/s, 6.144 Gb/s, 4.915Gb/s, 2.458 Gb/s, 1.229 Gb/s, 0.614Gb/s
- Other optical links
