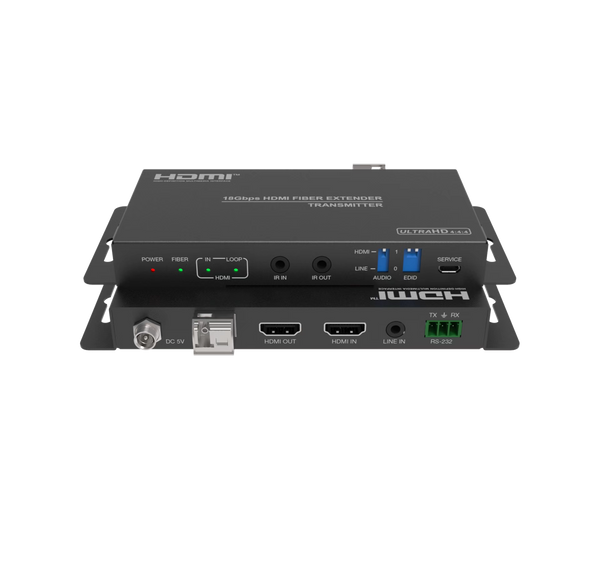

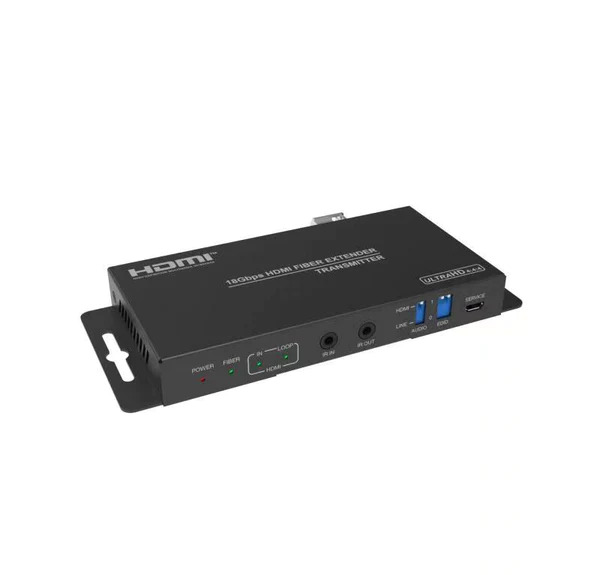

HDMI 2.0 to Fiber optic converter (4K 60HZ 18Gbps Fiber extender)
The HDMI 2.0 optical terminal can extend the HDMI signal to 1,000 m (single-mode fiber) or 300 m (multimode fiber), with a maximum video resolution of 4K2K@50 / 60Hz (RGB444).The sender has a loop output, an audio insertion, and an EDID management function, and the receiver has an audio separation function.This product supports two-way infrared control, where the user can control the display device at the signal source or the signal source device, and the user can also transmit commands between the transmitter and the receiver using the RS-232 interface.This product has the advantages of high interference resistance, high safety performance, small volume and light weight, and has incomparable advantages in long-distance transmission.
It is widely used in exhibition and display, rail transit, radio and television, video conferencing, medical teaching, education recording, projection integration and other high requirements for video industries.

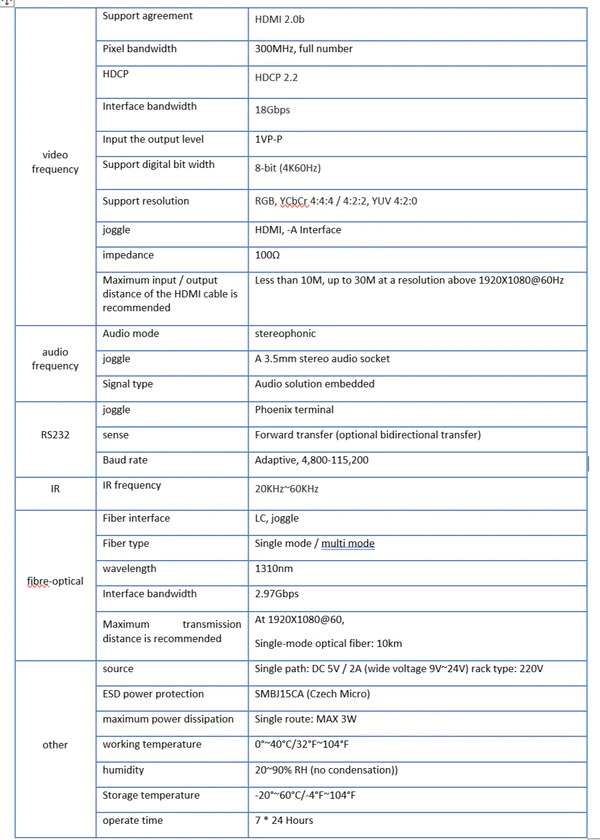

Technical Specifications:
- Compliance with HDMI 2.0b, HDCP 2.2, and DVI 1.0 specifications
- Video resolution is up to 4K2K@50 / 60Hz 4:4:4
- Support for 18Gbps video bandwidth
- HDMI audio format: LPCM2/5.1/7.1CH, Dolby Digital / Plus / EX, Dolby True HD, DTS,
- DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
- Support videos in 3D and HDR format, but do not support CEC control
- Transmission distance of up to 1,000 m (single-mode fiber) or 300 m (multi-mode fiber) (50 / 125um / OM3)
- Support two-way infrared control, RS-232 transmission, and EDID direct through management, and the control becomes simple and convenient
- The transmitter has a loop output interface (sharing local HD audio) and audio insertion function
- The receiver has the audio stripping and output function
