Novastar N9
Due to some restrictions, we cannot show the pricing of some products. For more information, please contact us
Description

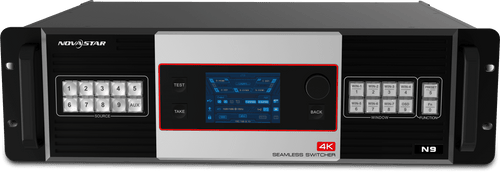

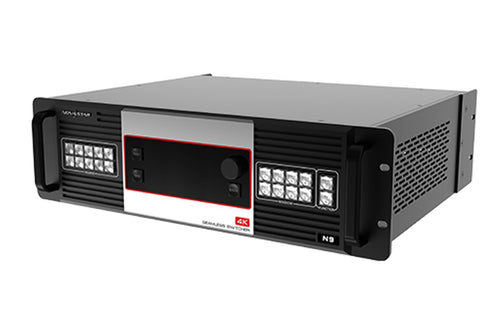

The N9 is a high-performance multi-screen video switcher independently developed by NovaStar. Using high-performance video processing technologies, it is capable of processing and outputting ultra-high quality images. The N9 also provides powerful video signal receiving capability. It can support 9 inputs and 4 DVI outputs at the same time. A single N9 can load up to an 8KK screen, and multiple N9 units can be cascaded for output.
Technical Specifications:

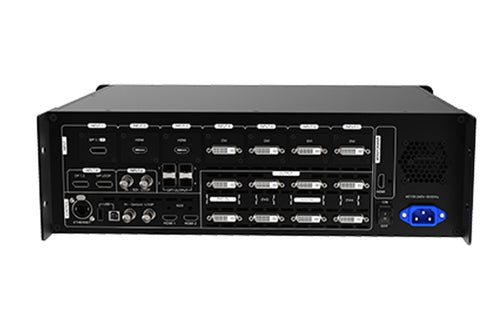

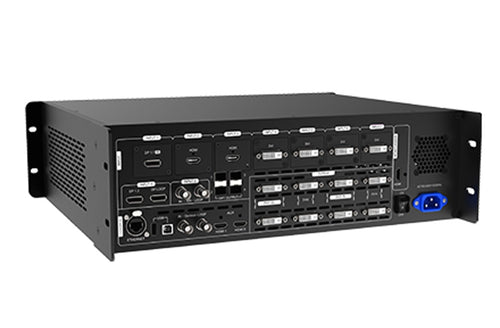

- Up to 9 inputs, including 1 × dual-link DP 1.1 (can be replaced by HDMI 1.4, DP 1.1 or dual-link DVI), 2 × HDMI 1.3 (can be replaced by DVI/VGA/CVBS), 4 × DVI,1 × DP 1.2 and 1 × 3G-SDI.
- Up to 7 layers supported at the same time. Max. resolution of each layer:3840×2160, 7680×1080 or 1920×4320.
- Customized BKG settings You can load an image file from the control computer or capture an input source image displayed on the screen as the BKG image.
- Shaped layer, layer mask and color keying supported
- Layer cloning and Z-order layer sorting supported
- Input source image cropping supported
- Quick mosaic and custom mosaic
- EDID management supported Supports custom EDID and standard EDID.
- 4 × DVI mosaic output, 4 × DVI backup output, 1 × HDMI preview output, and 2× Aux output
- Output resolution settable. The mosaic width of 4 outputs can be up to 15360x600.
- 4 × single-link mosaic output, or 2 × dual-link mosaic output
- Input, PVW, PGM and prompter monitoring supported by MVR connector
- Layer position and size adjustable Layers can be added with borders of custom widths and colors.
- presets A total of 32 user presets can be created and saved as templates which can be used directly and conveniently.
- Intuitive color LCD screen and clear button indicator prompt on the front panel, simplifying system control and operation.
- Genlock synchronization and synchronization with any input source supported, achieving output vertical synchronization.
