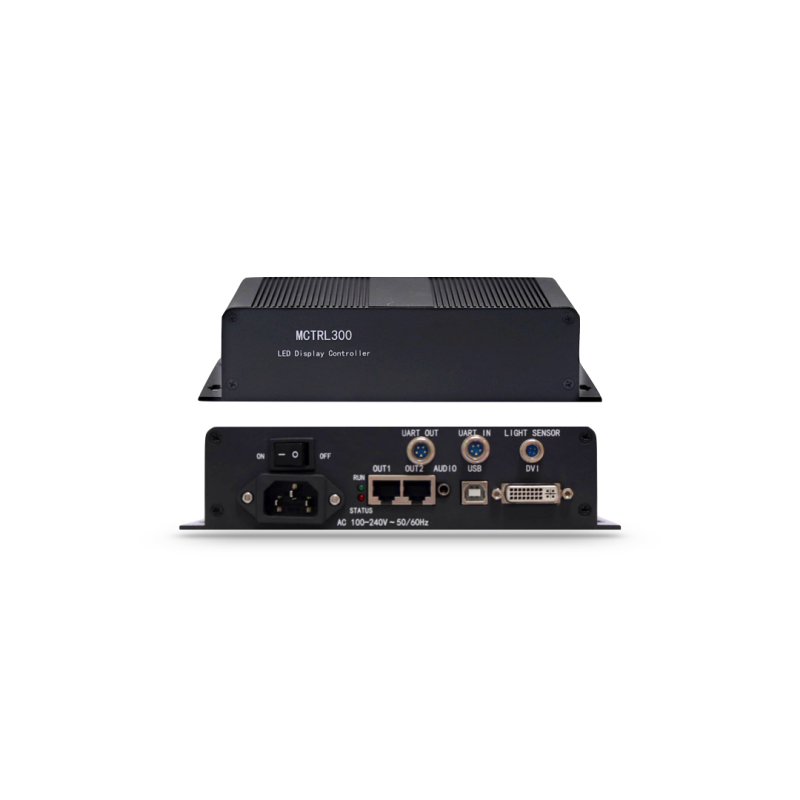

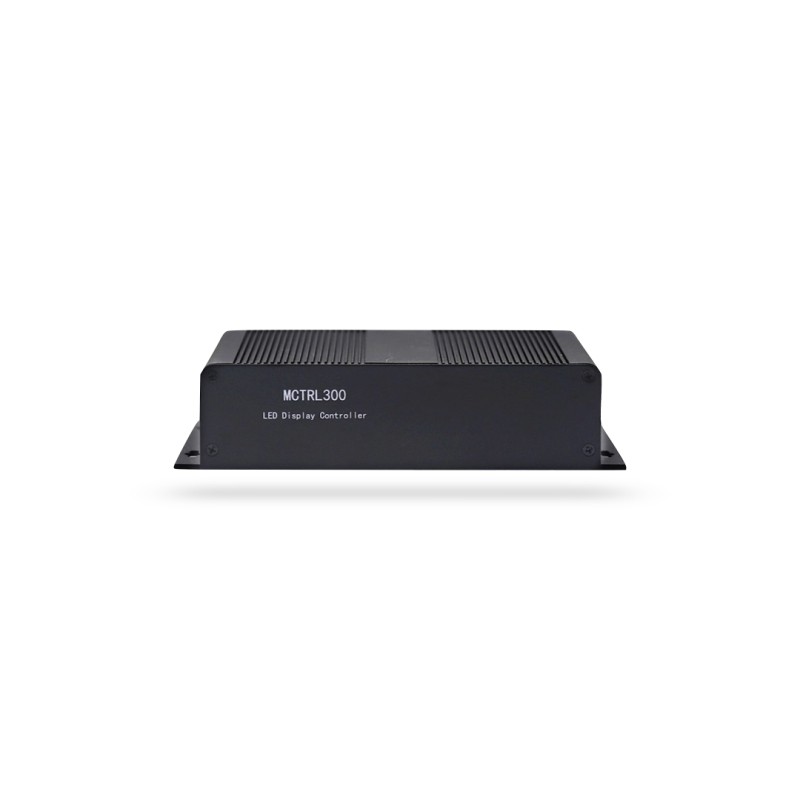

Novastar MCTRL300 LED Display Controller
The MCTRL300 is an LED display controller developed by NovaStar. It supports 1xDVI input, 1x audio input, and 2x Ethernet outputs. A single MCTRL300 supports input resolutions up to 1920×1200@60Hz. The MCTRL300 communicates with PC via type-B USB port. Multiple MCTRL300 units can be cascaded via UART port.
For more information, pls contact us at jane@summled.com or Whatsapp +86 15985829118
For more information, pls contact us at jane@summled.com or Whatsapp +86 15985829118
Description
MCTRL300 is NovaStar’s independent control card from the M3 Series, and supports audio and video input. The M3 undertakes encoding and data processing, sending the audio and video to the display. A single card supports maximum loading capacity of 2048×668@60Hz. It communicates with PC via USB port for convenience.
- DVI video input
- Audio transmission
- Dual-Ethernet output, with dual-Ethernet cable hot backup and multiple controller hot backup
- USB port control, for cascading and control of multiple units
1.3 million pixel loading capacity, with resolutions of 1280×1024@60Hz, 1024×1200@60Hz, 1600×848@60Hz, 1920×712@69Hz, 2048×668@60Hz and Maximum height: 3840; Maximum height:3840
1 light sensor interface, adjust the screen brightness automatically
Independent power supply
Certifications: CE, RoHS, EAC, FCC, IC
Features:

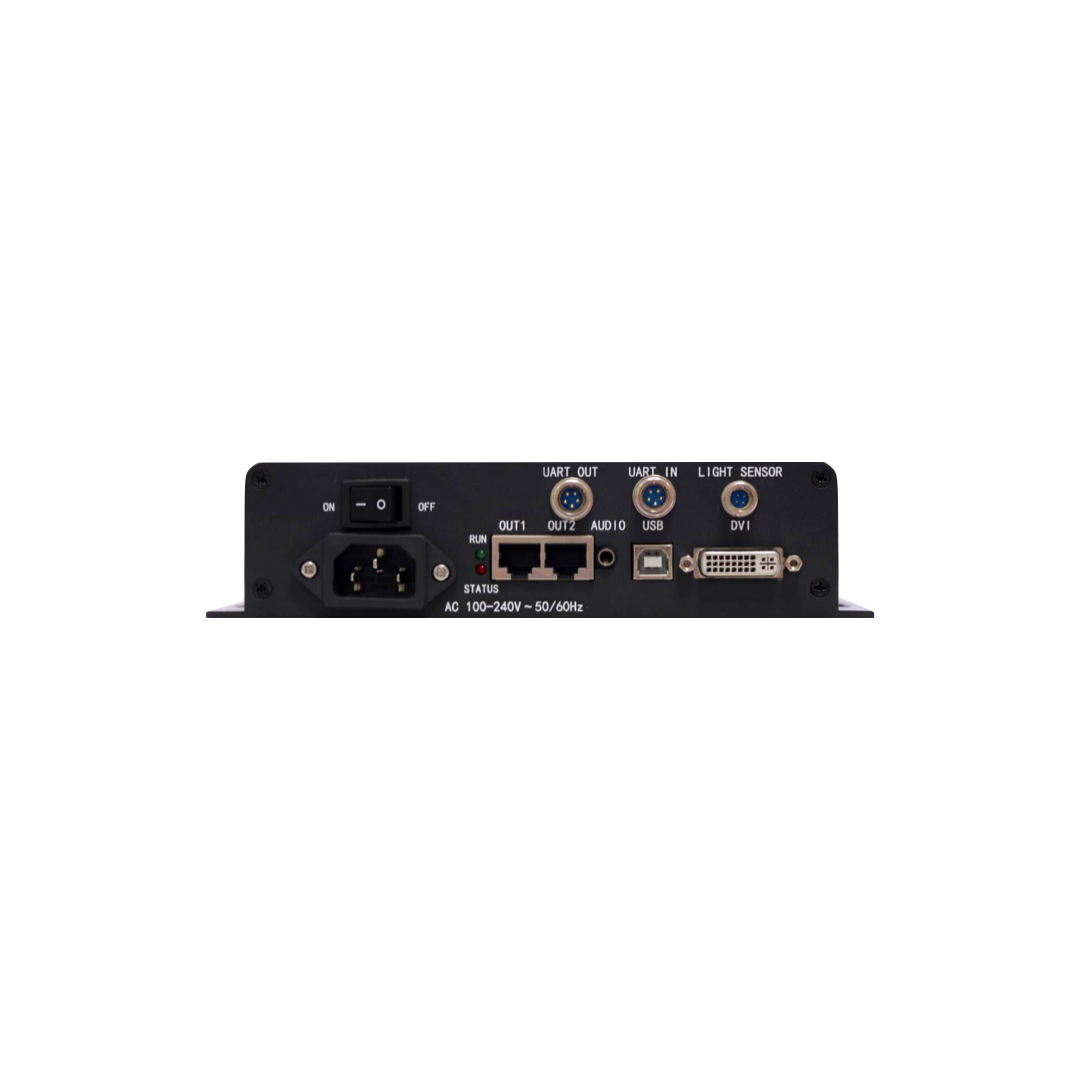

- 1 × DVI input
- 1 × audio input
- 1 × type-B USB control port
- UART control ports to cascade devices for uniform control.
- Dual Ethernet outputs.
- Supports the new generation of NovaStar calibration technology, which is fast and efficient.
- 1 × light sensor connector.
- Supports resolutions up to 2048×668@60Hz and downward compatibility.
- Supports a variety of video formats.
