Novastar KU20 LED Display Controller

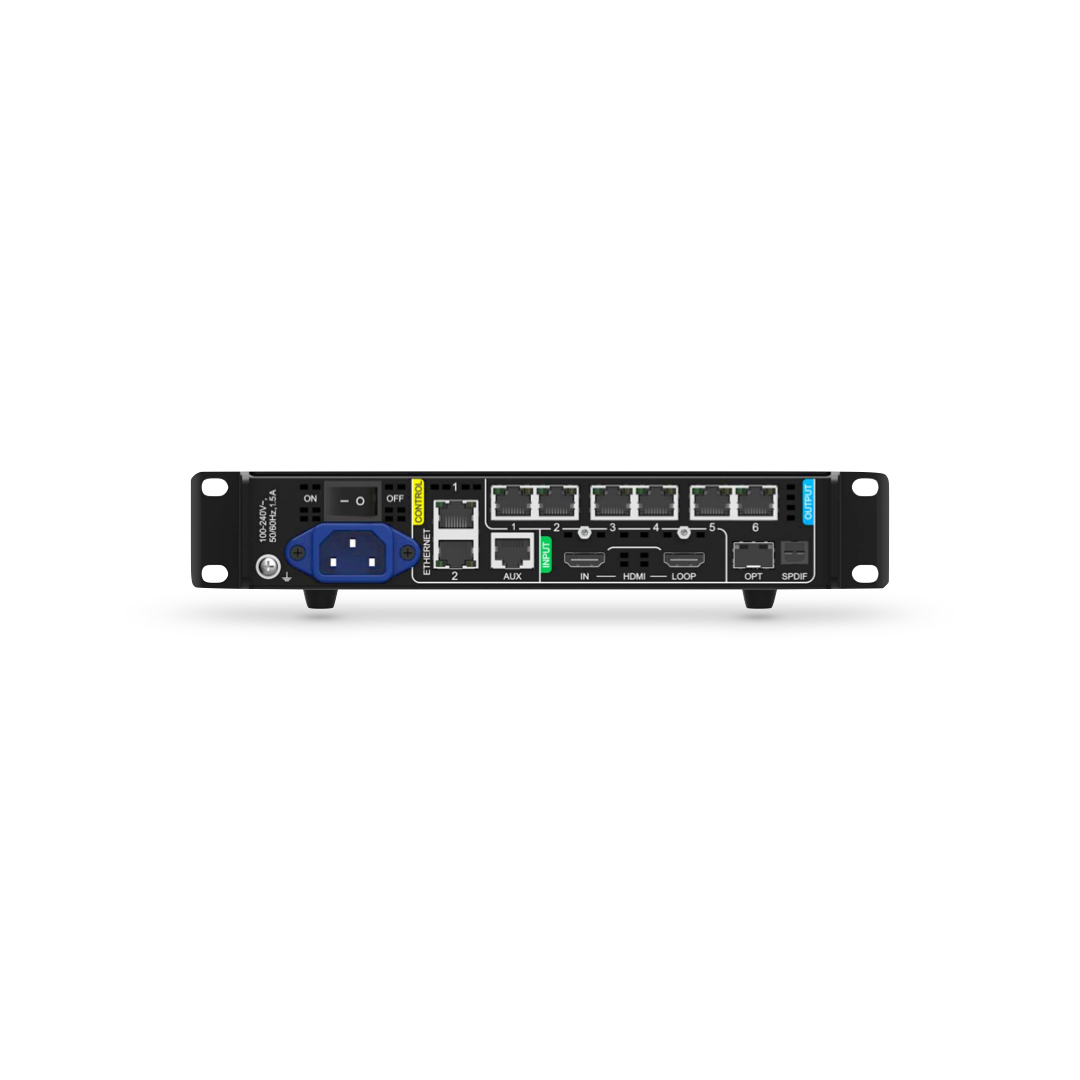

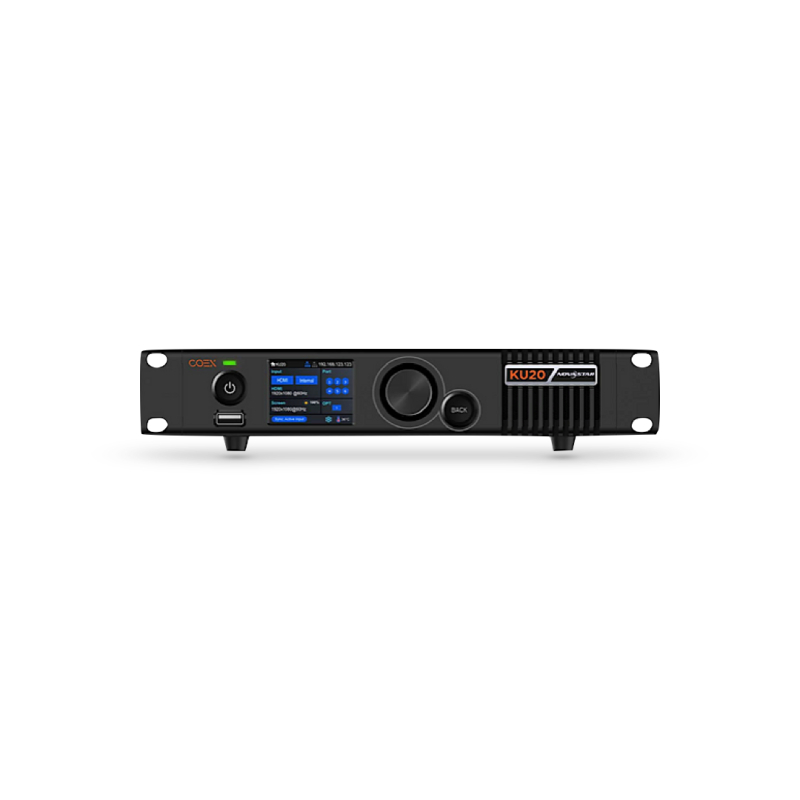

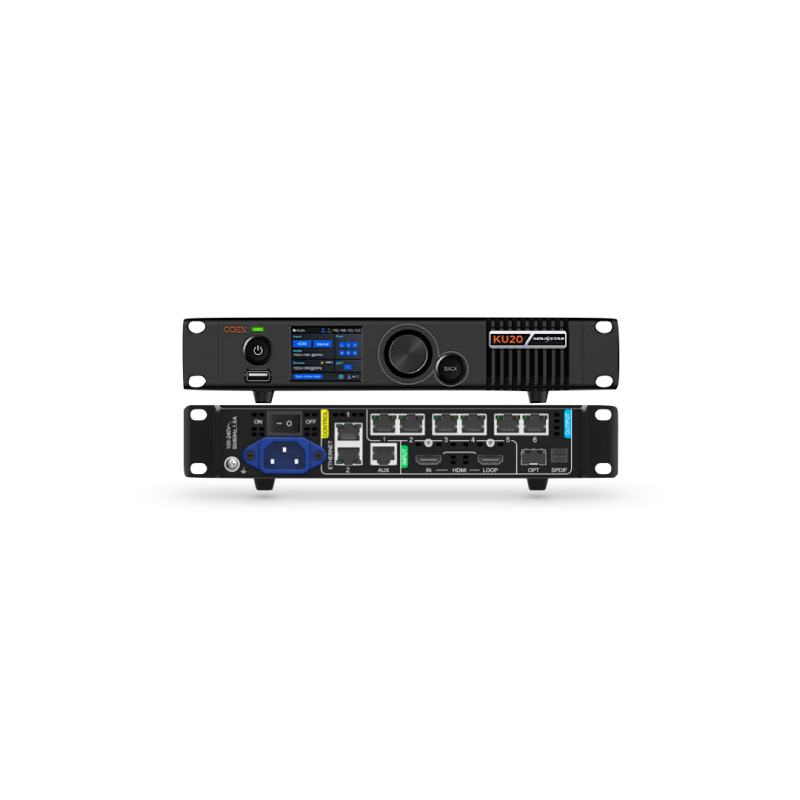

The KU20 is an LED display controller with 6 Ethernet ports in the brand-new control system COEX series of Xi’an NovaStar Tech Co., Ltd. (hereinafter referred to as NovaStar). This controller offers 1x HDMI input, 6x Ethernet outputs and 1x optical output. It can also work with the brand-new software VMP (Vision Management Platform) to provide a better operation and control experience.
For more information, pls contact us at jane@summled.com or Whatsapp +86 15985829118
For more information, pls contact us at jane@summled.com or Whatsapp +86 15985829118
Features：
Inputs and Outputs
- HDMI input
1x HDMI 1.3 input (with loop through) - 10-bit and 8-bit video inputs
- Ethernet outputs
6x Ethernet outputs, load capacity up to 2.3 million pixels - Optical output
1x 10G optical output Advanced Features
Advanced Features
- Full Grayscale Calibration
Work with NovaStar’s high-precision calibration system and the C3200 scientific grade camera to generate unique calibration coefficients for each grayscale, ensuring uniformity of each grayscale and dramatically improving the image quality. - Pixel level brightness and chroma calibration
Work with NovaStar’s high-precision calibration system to calibrate the brightness and chroma of each pixel, effectively eliminating differences and enabling high consistency for both brightness and chroma. - Latency
− Support low latency. The latency at the controller is 0 frame (less than 1 ms) and the load capacity is not reduced.
− Support additional latency. Zero to two frames of latency can be added at the controller. - Frame Rate Adaptive
The controller can be adaptive to various video input frame rates, including decimal frame rates. Custom frame rates are also supported and the step size of fine tuning frame rate is as small as 0.01 Hz. - Display system monitoring
Support monitoring of the device status and screen status. Any fault and alarm information can be reported actively.
Device Controls
- VMP software control
The device can be connected to the VMP software to provide easy and convenient operations and smart device management. - Cascading control via Ethernet
The Gigabit Ethernet control ports support TCP/IP protocol and star topology. No switch or router is needed to deploy multiple devices on the same LAN via device cascading as the network switching function is already built in.
Function Limitations
- The Frame Rate Adaptive function can be achieved when the KU20 works with the A10s Pro receiving card. Currently supported driver ICs include MBI5264, MBI5253B, ICND2055, ICND2065, ICND2059 and ICND2069. In addition, the .ncp file generated by the Cabinet Tool from NovaStar must be used.
- The Full Grayscale Calibration function can be achieved when the KU20 works with the A10s Pro receiving card.
