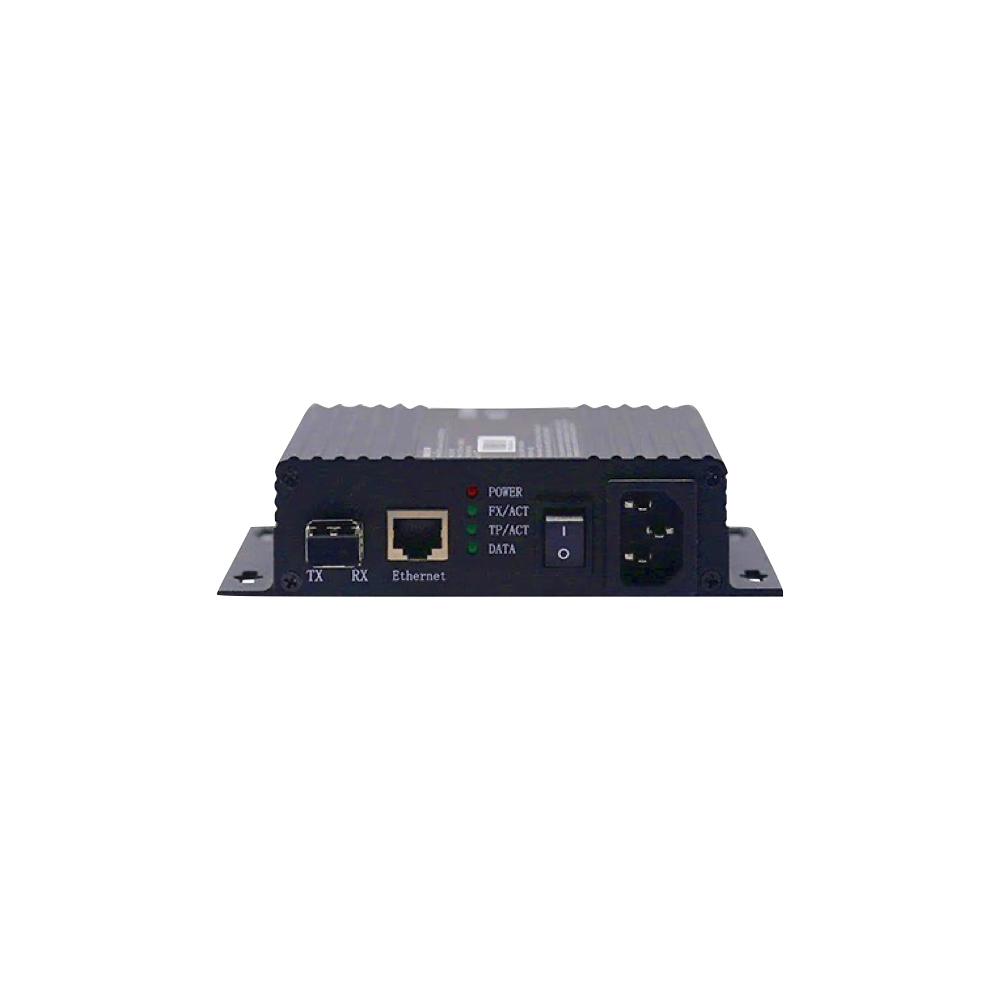

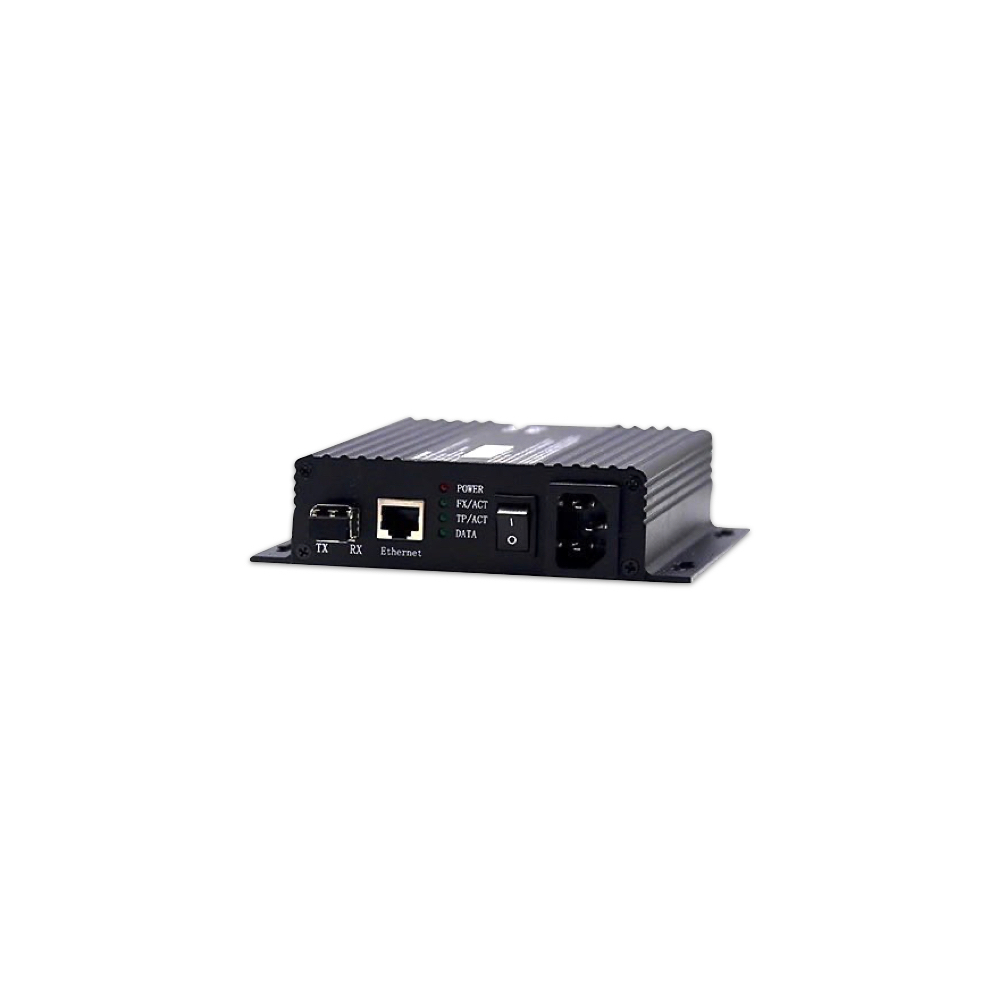

Novastar CVT310 Fiber Converter
For more information, pls contact us at jane@summled.com or Whatsapp +86 15985829118
Description

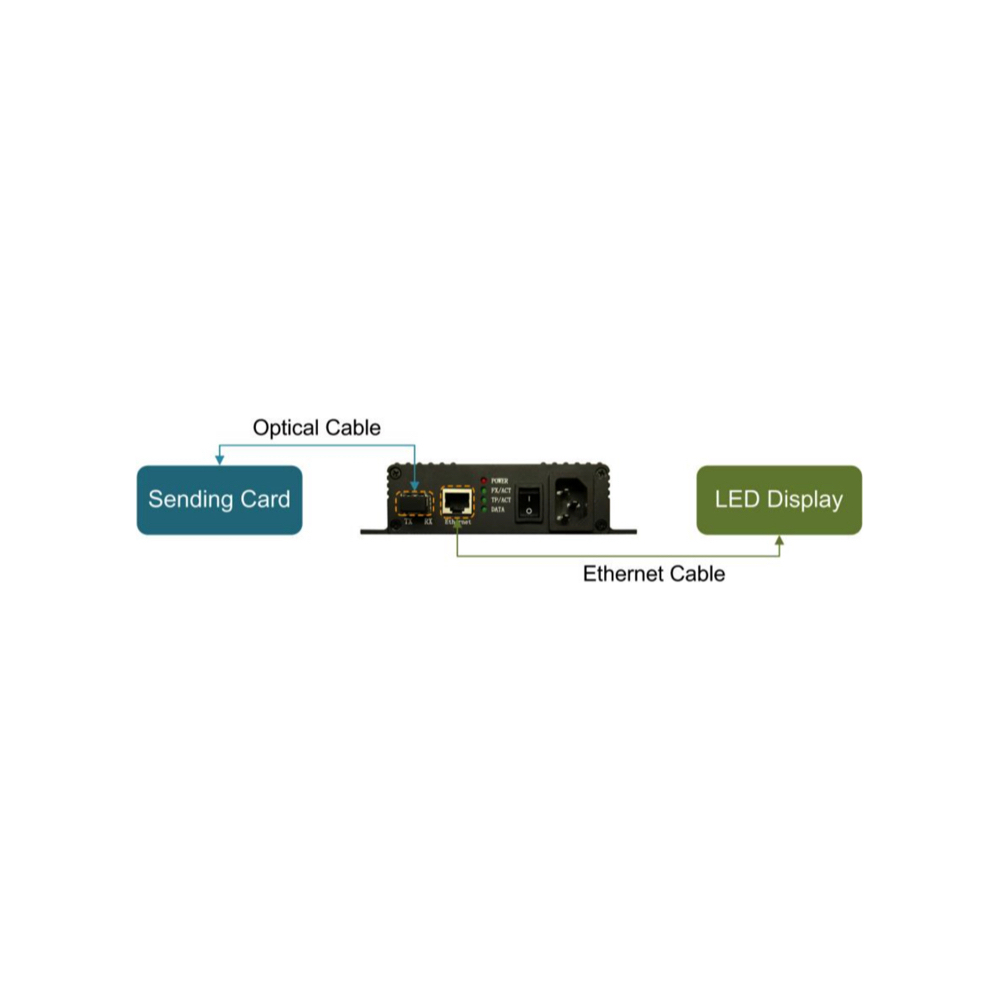

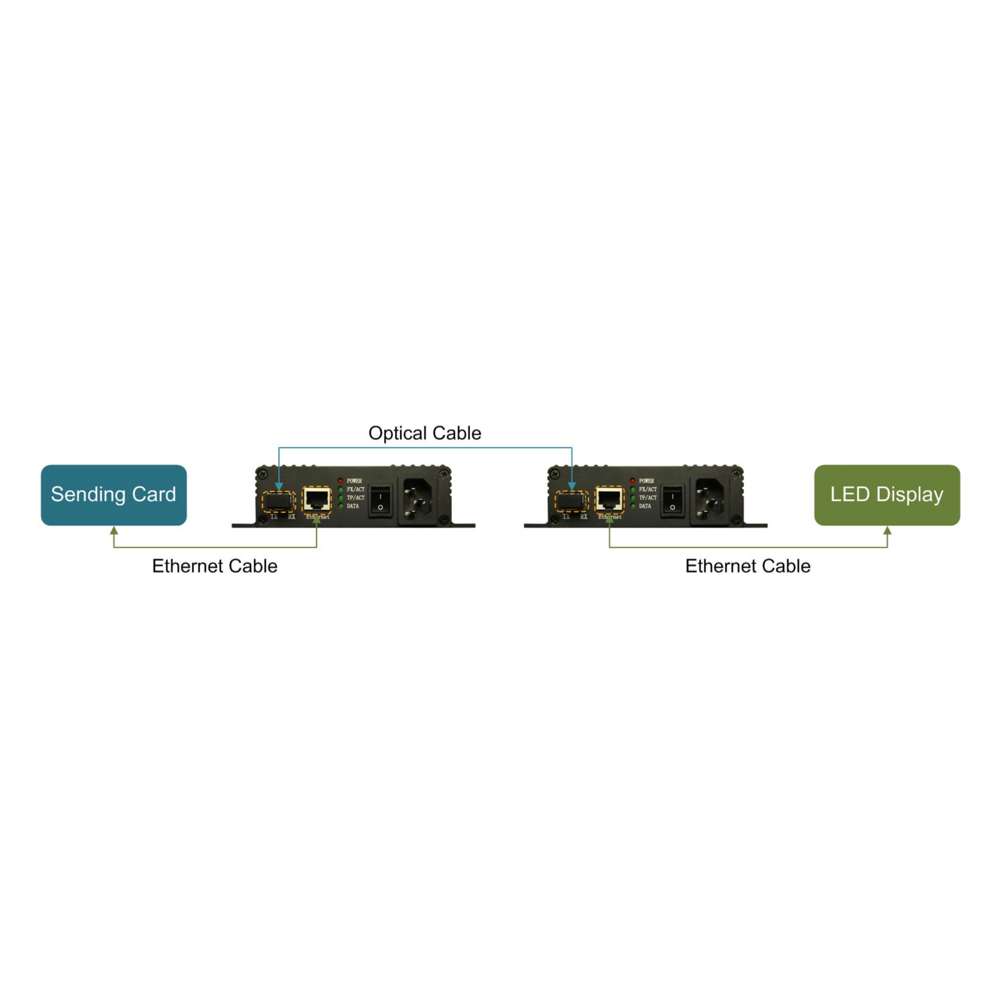

The CVT310 fiber converter offers a way of conversion between optical signals and electrical signals for video sources to connect the sending card to the LED display. It is ready to use once connected, with no drivers required.

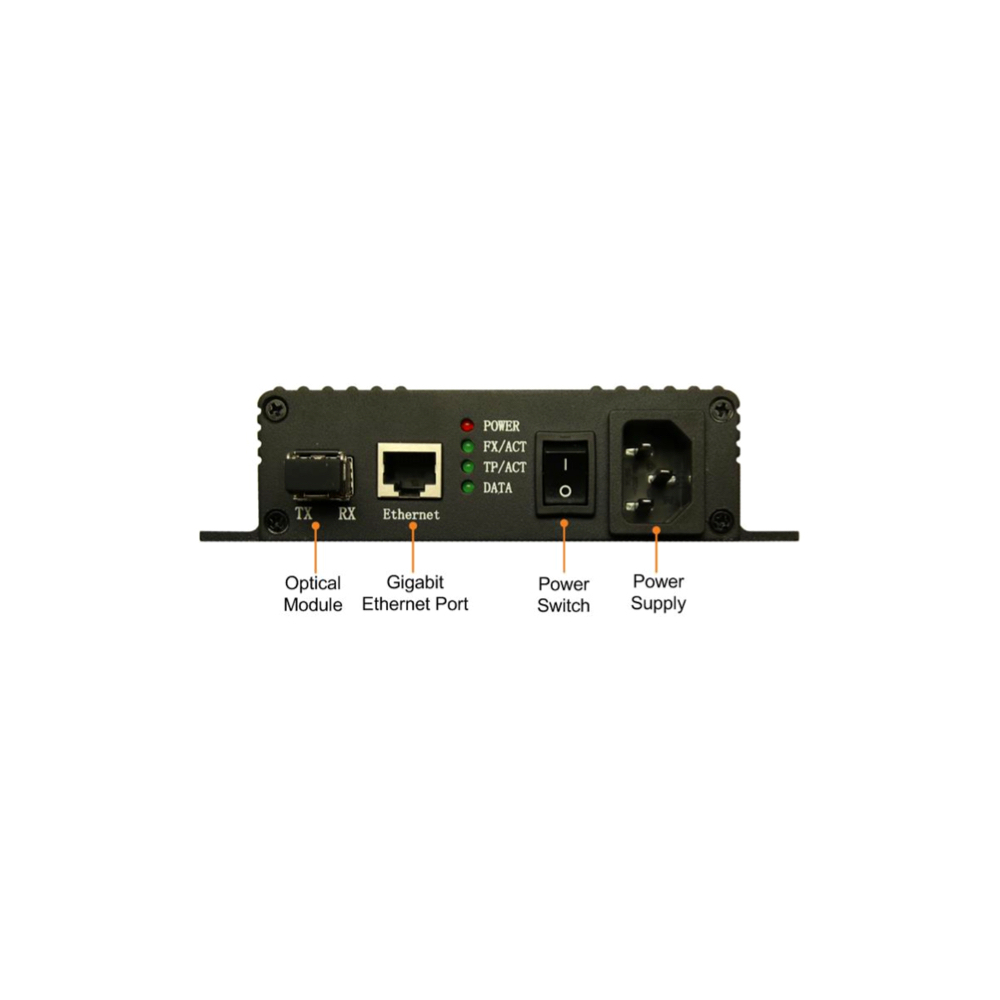

Features:
- 1x Gigabit Ethernet port
- 1x Multiple-mode twin-core LC optical port with an optical module installed at the factory
- Optical port: 1.25 Gb/s rate, 850 nm wavelength, up to 300 m transmission distance, hot pluggable
Electrical Specifications
– Input voltage AC: 100-240 V, 50/60 Hz
– Rated current: 0.7 A
– Rated power consumption: 3.5 W
Operating Environment
– Temperature: –20°C to +70°C
– Humidity: 10% RH to 90% RH, non-condensing
Storage Environment
– Temperature: –30°C to +80°C
Physical Specifications
– Dimensions: 149.0 mm × 135.0 mm × 38.0 mm
– Net weight: 0.53 kg
Packing Information
– Carrying case: 335 mm × 190 mm × 62 mm, kraft paper box
– Foam: 330 mm × 180 mm × 5 mm (Top) 330 mm × 180 mm × 53 mm (Bottom)
– Packing box: 400 mm × 365 mm × 355 mm, kraft paper box
