Magewell Eco Capture Dual HDMI M.2
For more information, pls contact us at jane@summled.com or Whatsapp +86 15985829118

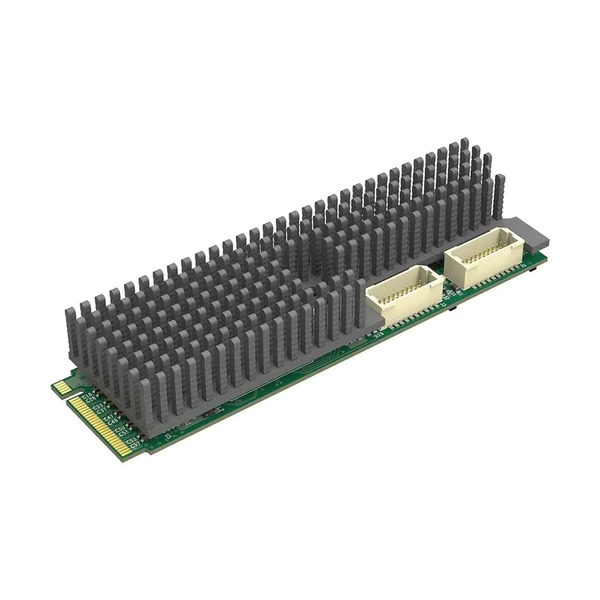

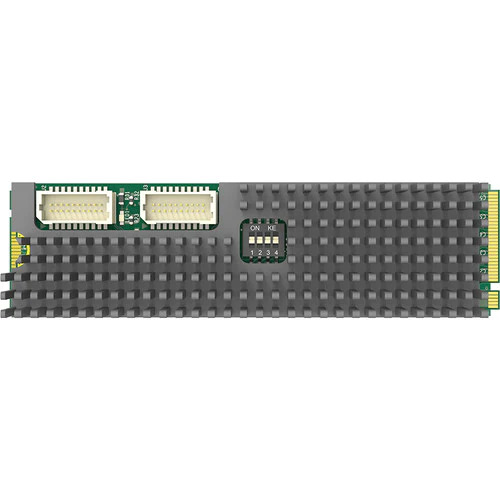

Magewell Eco Capture Dual HDMI M.2 Card supports two HDMI input sources simultaneously and allows you to capture up to 2048 x 2160 resolution with embedded audio from each source to your computer. Featuring an M.2 (PCIe 2.0) computer interface, this card provides the flexibility to be used in compact/thin tablet computers and other small form factor PCs where PCIe slots may be at a minimum. It's compatible with Windows and Linux operating systems and is capable of operating 24 hours a day, 7 days a week while an LED indicator confirms the working state of the input the entire time (idle, input signal locked, memory failed, or FPGA configuration).
The Eco Capture Dual HDMI M.2 Card also offers many processing and other features, including resolution scaling and a high-fidelity pipeline. The card has two native JST SHD input connectors and comes with two matching SHD to HDMI type A adapter cables for connecting your HDMI signals.
Technical Specifications:
- Magewell Eco Capture Dual HDMI M.2 Card - SHD to HDMI Type A Breakout Cable - Magewell 1 Year Warranty
- Supported OS: Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64)Linux (based on V4L2,support x86,x64 & ARM architecture)
- Supported APIs: WindowsDirectShowDirectKSWave API/DirectSound/WASAPILinuxV4L2ALSA
- Supported Software: VLCVirtualDubOBSxSplitvMixVidBlasterWirecastMicrosoft Media EncoderAdobe Flash Media EncoderAny other DirectShow/V4L2 encoding/streaming software
- Input Interfaces: 2x JST SHD 20-Pin socketDVI 1.0HDMI 1.4a
