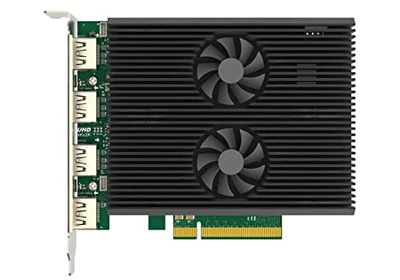

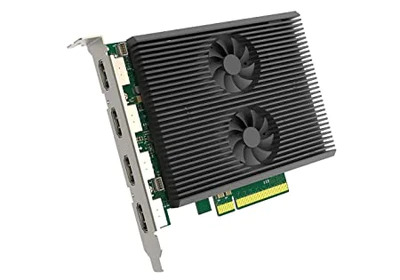

Magewell Pro Capture Dual HDMI 4K Plus LT
The Magewell Pro Capture Dual HDMI 4K Plus LT is a two-channel 4K capture card that captures 2x HDMI plus embedded audio and features loop-through 2x HDMI plus embedded audio.
For more information, pls contact us at jane@summled.com or Whatsapp +86 15985829118
For more information, pls contact us at jane@summled.com or Whatsapp +86 15985829118
The Magewell Pro Capture Dual HDMI 4K Plus LT is a two-channel 4K capture card that captures 2x HDMI plus embedded audio and features loop-through 2x HDMI plus embedded audio.
Technical Specifications:
- 594MHz HDMI receiver
- Adaptive HDMI equalizer
- Support for customized EDID
- Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut/HDR/VBI InfoFrames
- Full colorimetry support
- Support for 8/10/12-bit color depths
- Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
- Support for up to 8-channel IEC60958/IEC61937 audio streams
- Support for extraction of audio formation information & channel status data
- Support for extraction of video timing information
- Support for extraction of 3D format information
- Support for extraction of Sony/Canon DSLR time code
- Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode.
- Support for HDR10
